2000-3000mm diameter big gear teeth induction hardening machine

Maximum stroke length: 1000mm

Maximum workpiece diameter:3000mm

Work-piece Rotating Speed: 15-450r/min

Quenching feed speed: 6-3000mm/min

Workpiece fast feed: 4000mm/min

Machine positional accuracy: 0.03mm

Workpiece maximum weight: 5000kgs

Machine motor power: 15KW

Machine weight: 4000kg

Dimension: L1900× W 2000× H 1500mm

Motor: Servo motor

Quenching method: continues scanning quenching, timing quenching, sectional scanning quenching

Cooling method: spraying quenching liquid

Machine control method: CNC controlled Operation Method: Manual or Auto.

Mechanical configuration:

Ball screw, used for CNC cutting machine, custom-made as a whole, good quality and high precision;

The linear bearing is used for the guide rail, which has low friction and long service life. The surface is plated with hard chrome and has strong anti-rust ability;

The lifting part balances the weight through the sprocket chain, and the counterweight is the casting scale mound;

The sink is completely sealed, and sliding doors can be installed;

The standard shield is cold plate Q235, and the stainless steel shield is optional;

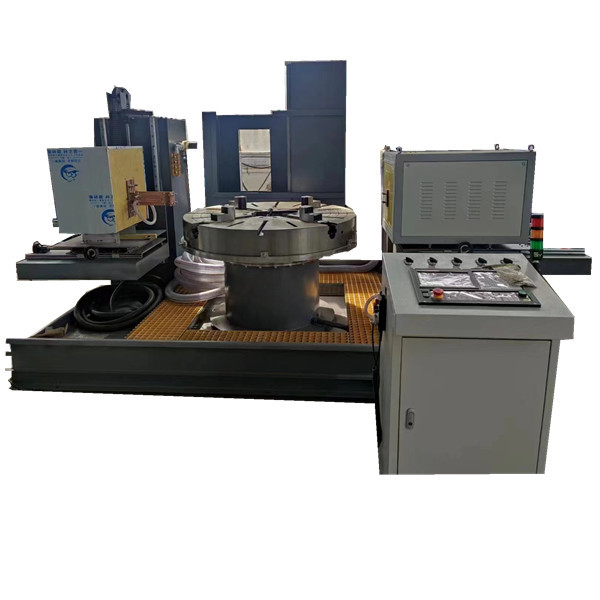

2000-3000mm diameter big gear teeth induction hardening machine Images
